Modern electrical systems depend on accurate measurement, stable performance, and reliable monitoring. Whether in homes, commercial buildings, or industrial plants, the ability to measure electrical loads safely and efficiently is fundamental to maintaining a stable power network.
Yet most people rarely think about how high currents are measured without exposing instruments—and the people using them—to dangerous levels of electricity. This is where the current transformer plays an essential role.
A current transformer allows complex electrical systems to be monitored from a safe distance by stepping down high currents into smaller, manageable values. Understanding how CTs function, how they support load measurement, and how they contribute to power factor correction can help you make better decisions about electrical safety, energy efficiency, and system reliability.
This article walks you through these concepts in clear, practical terms, making the topic accessible even if you are not an electrical engineer.

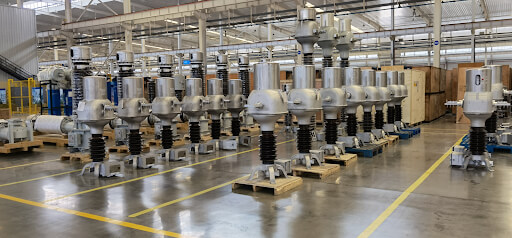

Understanding the Basics of Current Transformers
A current transformer is a device designed to measure high electrical currents indirectly. Instead of connecting meters directly to high-current circuits—which would be unsafe and impractical—a CT uses electromagnetic induction to generate a smaller secondary current that accurately represents the primary current flowing through the system.
This secondary current is typically standardized to 1 ampere or 5 amperes, making it compatible with a wide range of measuring instruments and control equipment.
At the core of every CT is a magnetic core surrounded by a secondary winding. The primary “winding” is usually a conductor or busbar that passes through the CT’s opening. When current flows through the primary conductor, it creates a magnetic field that induces a proportional current in the secondary winding.
This simple but powerful principle allows the CT to act as both a measuring device and a safety barrier, ensuring that monitoring equipment never has to handle dangerous current levels directly.
Types of Current Transformers and Their Practical Uses
Window-Type and Split-Core CTs
Several types of current transformers exist, each designed for specific environments and applications. Window-type CTs—also known as toroidal CTs—feature a ring-shaped core through which the primary conductor passes, making them common in distribution panels and switchboards.
Split-core CTs are a variation of the window type, featuring an openable core that allows installation without disconnecting existing wiring. Their design makes them especially useful for retrofits, temporary monitoring setups, and quick field measurements where minimal disruption is essential.
Wound and Cast-Resin CTs
Wound CTs, where both the primary and secondary windings are built directly into the CT structure, are often selected when precise measurements or specific current ratios are required—particularly in specialized metering or control applications. Another widely used category includes cast-resin CTs, which are fully insulated with epoxy resin for durability and environmental protection, making them suitable for indoor distribution systems.
Regardless of the type, all CTs share the same core purpose: enabling safe and accurate current measurement while protecting instruments from exposure to high currents. The appropriate choice depends on installation conditions, expected load levels, and required measurement accuracy.
CTs in Load Measurement: Why Accuracy Matters
Reliable load measurement is crucial for understanding how energy is consumed and how electrical systems behave under different conditions. A current transformer plays a foundational role by providing the accurate current data needed for meters, monitoring devices, and automated control systems. Without accurate CT readings, it becomes difficult to manage demand, analyze energy use, or identify inefficiencies. In industrial environments, incorrect measurements could even result in improper operation of equipment or unexpected failures.
In everyday applications, CTs make it possible to track electricity consumption without interrupting the primary circuit. They provide a continuous and safe stream of data, allowing systems to detect overloads, unbalanced phases, or unusual load patterns. Energy monitors and digital meters rely on CTs as their primary sensors, ensuring that the numbers you see on a display truly reflect what is happening inside the electrical system.
The Role of CTs in System Safety and Monitoring
Protection is another major function of the current transformer. CTs feed current information to protective relays, which in turn activate circuit breakers when dangerous conditions arise. When a fault occurs—such as a short circuit—the CT captures the surge in current and sends the scaled-down signal to the relay. This triggers an automated disconnection of the affected circuit before damage spreads. This monitoring-and-response loop forms the backbone of electrical safety in modern power networks.
In addition to protection, CTs help maintain the overall health of a system by continuously monitoring current flow. By comparing expected and actual current values, operators can quickly spot signs of equipment malfunction, phase imbalances, or unusual consumption patterns. This makes predictive maintenance possible, helping facilities avoid costly downtime. Without CTs, systems would need bulky, specialized sensors not suited for high-current environments, making operations more expensive and less reliable.
How Current Transformers Support Power Factor Correction
Power factor correction is essential for maximizing energy efficiency, reducing losses, and ensuring stable system performance. Although a current transformer does not correct power factor directly, it plays a critical role in measuring the variables needed to calculate it. Power factor is determined by analyzing both voltage and current waveforms, and CTs provide the current data that monitoring systems need to evaluate how efficiently power is being used.
For instance, many industrial facilities operate equipment such as motors, pumps, and transformers—devices that often cause the power factor to drop due to inductive loads. With real-time current information supplied by CTs, a power factor correction system can detect when reactive power increases and automatically activate capacitor banks or compensation equipment. This keeps the system operating efficiently, reduces stress on electrical infrastructure, and may even lower utility costs by minimizing reactive power charges.
Tips for Effective Use of Current Transformers
To ensure a current transformer performs accurately and reliably throughout its service life, it must be installed and maintained with proper care.
- Always make sure the CT is securely mounted and properly aligned around the primary conductor to avoid measurement errors.
- Confirm that the CT is paired with a compatible monitoring or metering device, especially in residential or small-business setups.
- Inspect CT wiring routinely, ensuring that connections are tight, insulation is intact, and the secondary circuit is never left open while energized.
- Verify burden ratings and confirm that the load conditions fall within the CT’s intended specifications to prevent saturation and inaccuracy.
- Use multiple CTs in three-phase systems so each phase can be measured independently, helping detect phase imbalances early.
- Integrate CT readings with monitoring software to support predictive maintenance and identify abnormal load patterns before they lead to equipment failure.
CHINT offers a range of CT designs that follow these performance principles, making it easier to match the right transformer to a specific application. Many electrical professionals rely on their CTs for their consistency, compatibility, and dependable operation across varied environments.
Conclusion
A current transformer may be small, but its influence on the safety, efficiency, and reliability of electrical systems is significant. From allowing safe and accurate measurement of high currents to enabling power factor correction systems to operate effectively, CTs play an essential role in nearly every modern electrical installation. By understanding how CTs work and how they support both load measurement and energy optimization, you can better evaluate the performance of your electrical system and make informed decisions about improvements.
Whether you are a homeowner looking to manage energy consumption or a facility operator overseeing complex industrial loads, appreciating the value of CTs helps you operate more confidently and safely. Clear measurement, better insights, and more efficient systems all begin with the simple but indispensable current transformer.
